Breath Logix – Br LGX IS

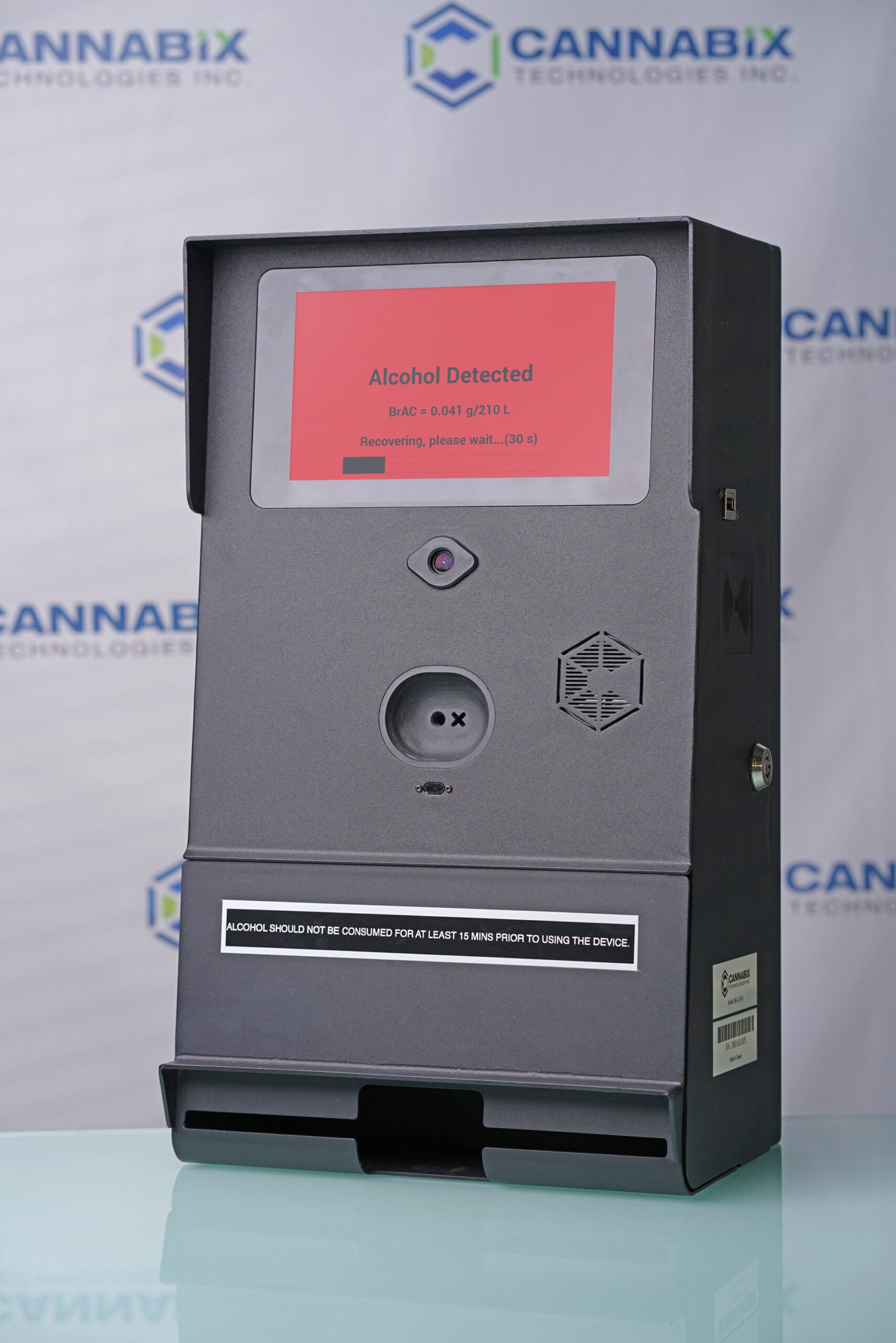

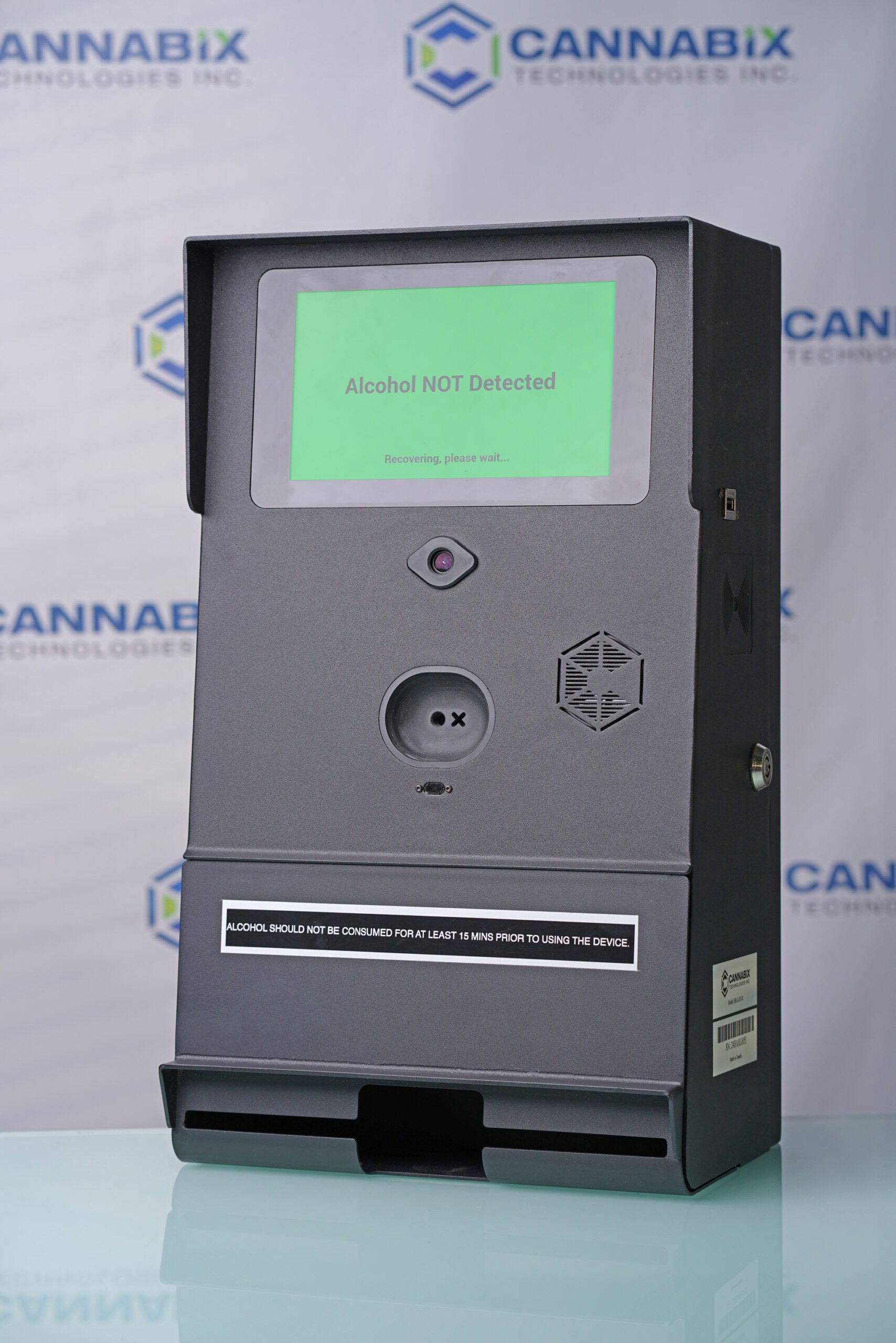

Breath Logix Industrial Series (Br LGX IS) – Automated Workplace Alcohol Screening System

The Breath Logix Industrial Series (Br LGX IS) is a fully automated breath alcohol screening system designed for access control of employees, contractors, and visitors.

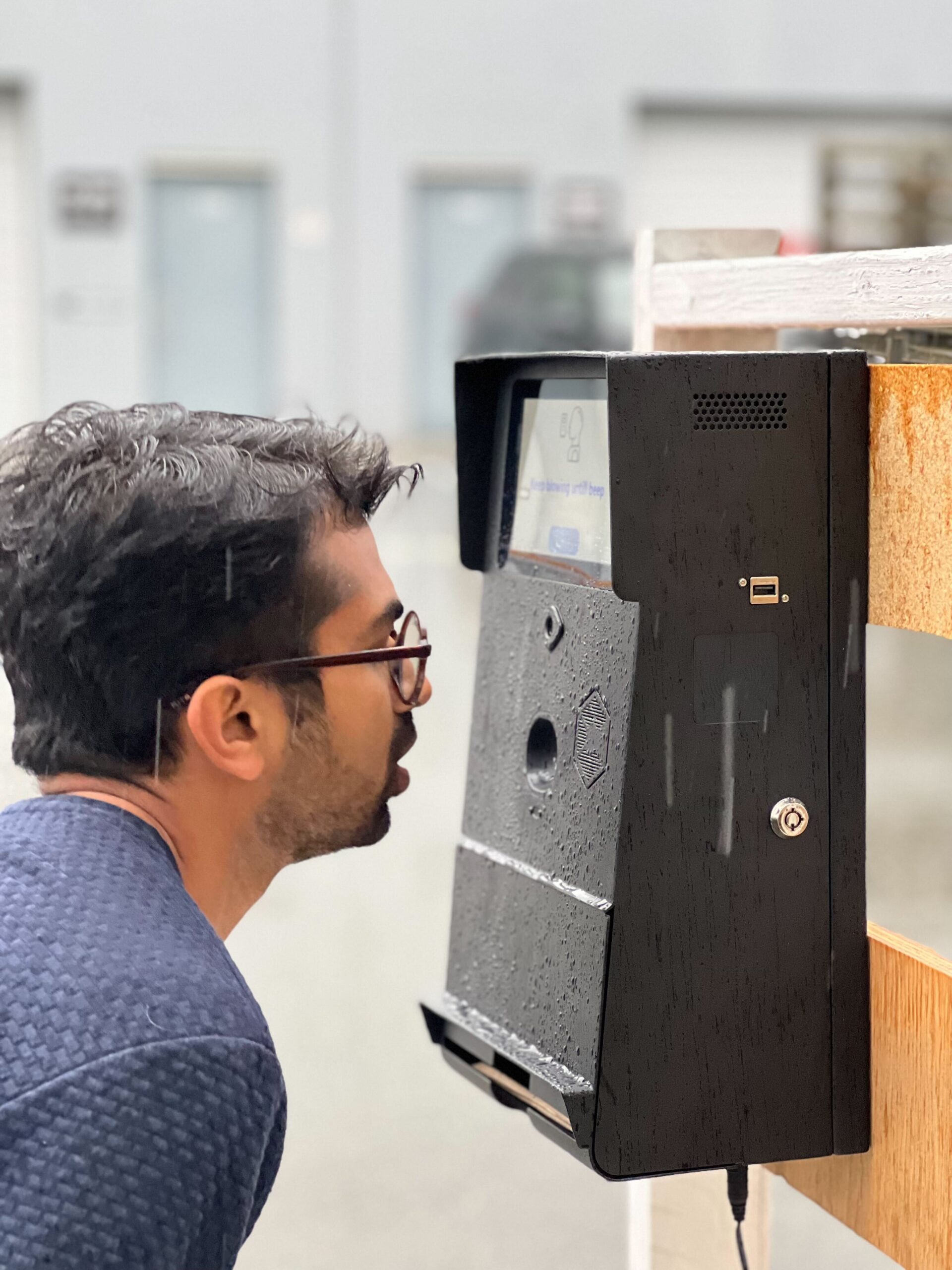

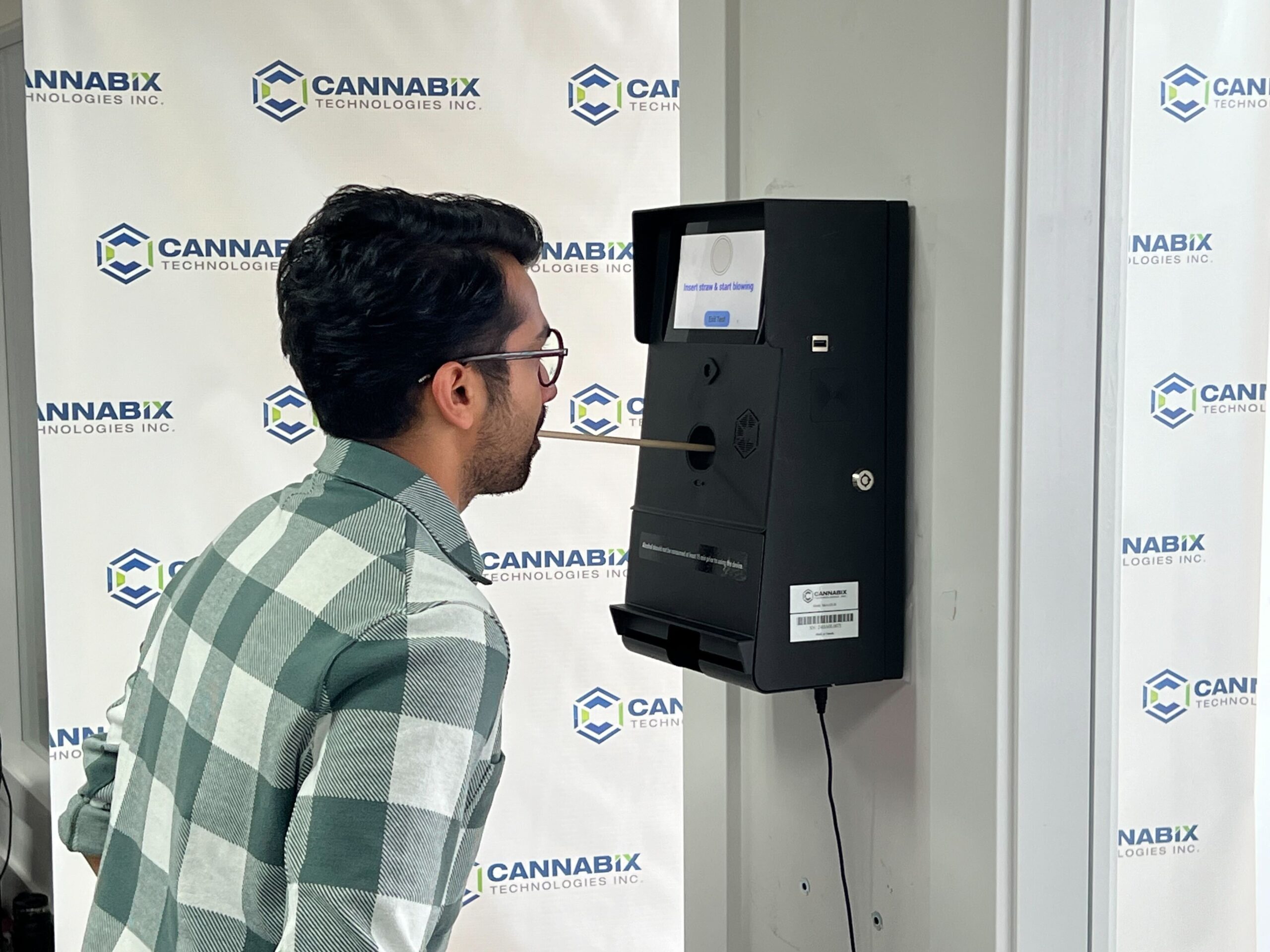

This self-administered, non-invasive device offers both contactless and direct testing modes. Engineered for high-volume environments, it delivers fast, accurate, and repeatable alcohol screening across a wide range of workplace settings.

Its field-proven alcohol detection technology and user-friendly interface ensure a long service life and outstanding subject compliance.

Add to quote request

Specification

Alcohol Sensor: Fuel Cell with high sensitivity and wide detection range
Detection Range: 0 to 0.3 g/210 L BrAC
Accuracy: ± .005 g/210 L for 0 to 0.05 g/210 L BrAC. ± 10% for 0.05 to 0.3 BrAC
Response Time: Under 20 seconds
Recovery Time: 10 seconds for negatives, under 60 seconds on positives
Display: 7″ capacitive touch screen
Operating Temperature: 32° – 113° F (0° – 45° C)
Power: 12 Volt DC power adapter
Size: 9.8″ x 17″ x 6.6″ (25 x 43 x 17 cm)
Weight: 20 lbs
Material: Sheet metal

Key features

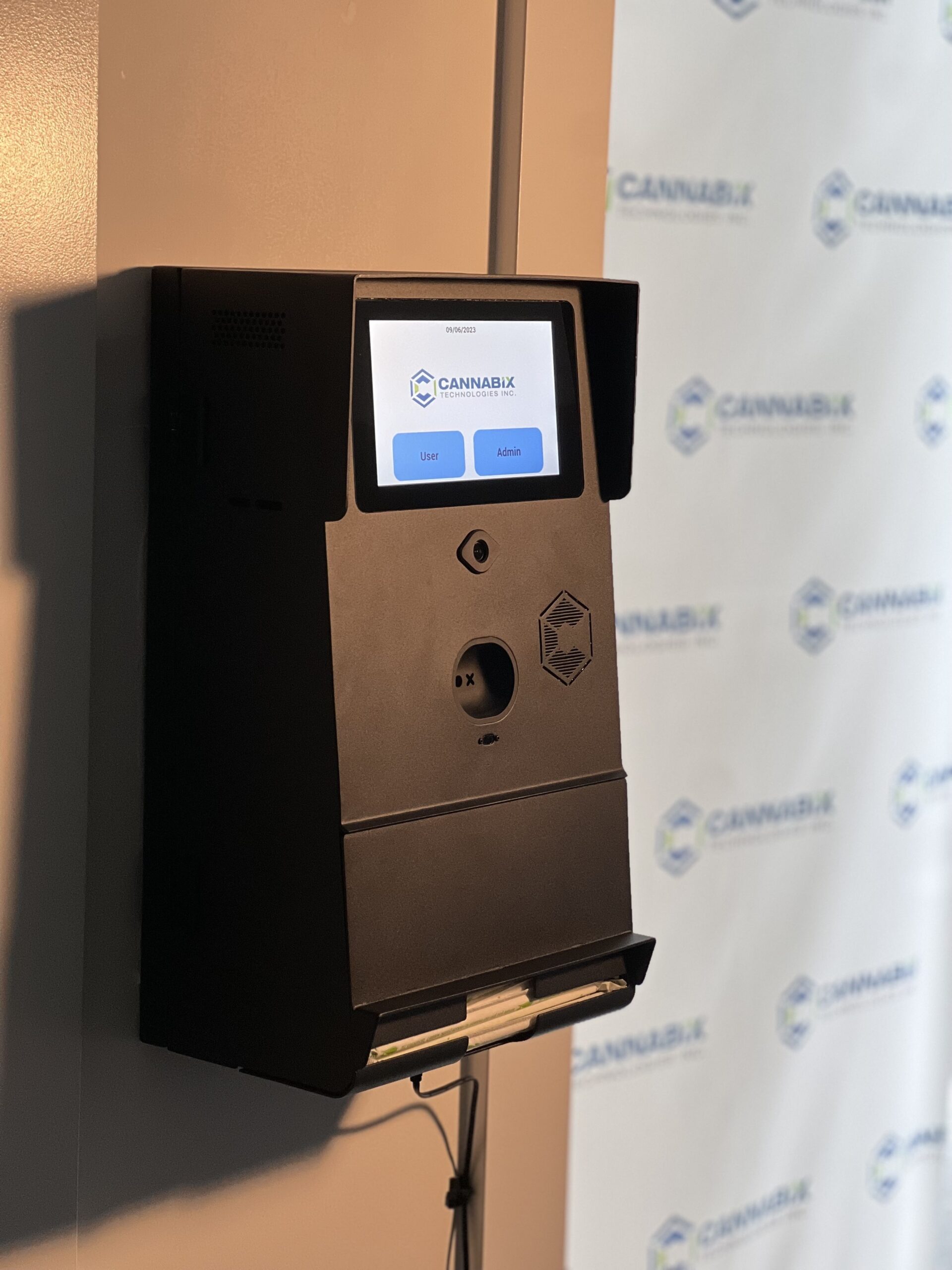

Breath Logix offers fully integrated solutions with intuitive graphic interface in an autonomous wall-mounted unit.
The Br-LGX-IS includes an innovative pre-calibrated modular cartridge technology that allows customers and distributors to efficiently maintain calibration and servicing of their Br-LGX-IS devices.
The Br-LGX-IS cartridge technology will reduce costly and time-consuming legacy calibration processes.

We recommend that you contact the distributor of your choice to ensure the availability of the desired product.

Breath Logix Br-LGX-IS Brochure

Write a customer review

First name *

Last name *

Email *

Star rating *

Subject *

Message *

Description

Specification

Alcohol Sensor: Fuel Cell with high sensitivity and wide detection range
Detection Range: 0 to 0.3 g/210 L BrAC
Accuracy: ± .005 g/210 L for 0 to 0.05 g/210 L BrAC. ± 10% for 0.05 to 0.3 BrAC
Response Time: Under 20 seconds
Recovery Time: 10 seconds for negatives, under 60 seconds on positives
Display: 7″ capacitive touch screen
Operating Temperature: 32° – 113° F (0° – 45° C)
Power: 12 Volt DC power adapter
Size: 9.8″ x 17″ x 6.6″ (25 x 43 x 17 cm)
Weight: 20 lbs
Material: Sheet metal

Characteristics
