Breath Logix – Br LGX WS

Breath Logix Series (Br LGX WS) – Automated Workplace Alcohol Screening System

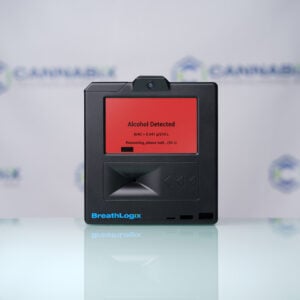

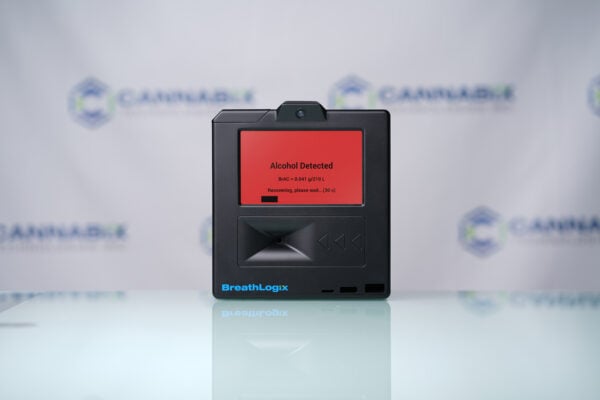

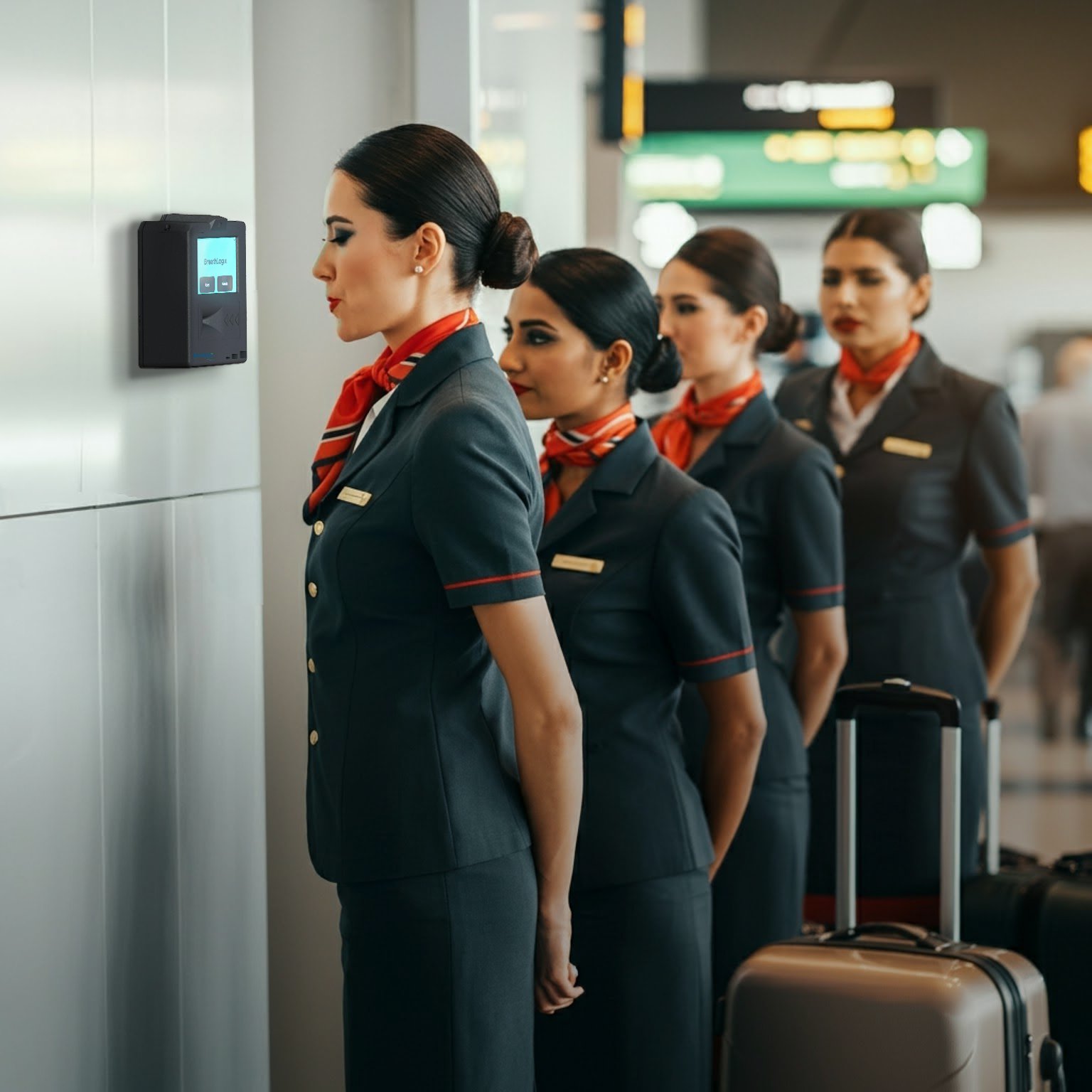

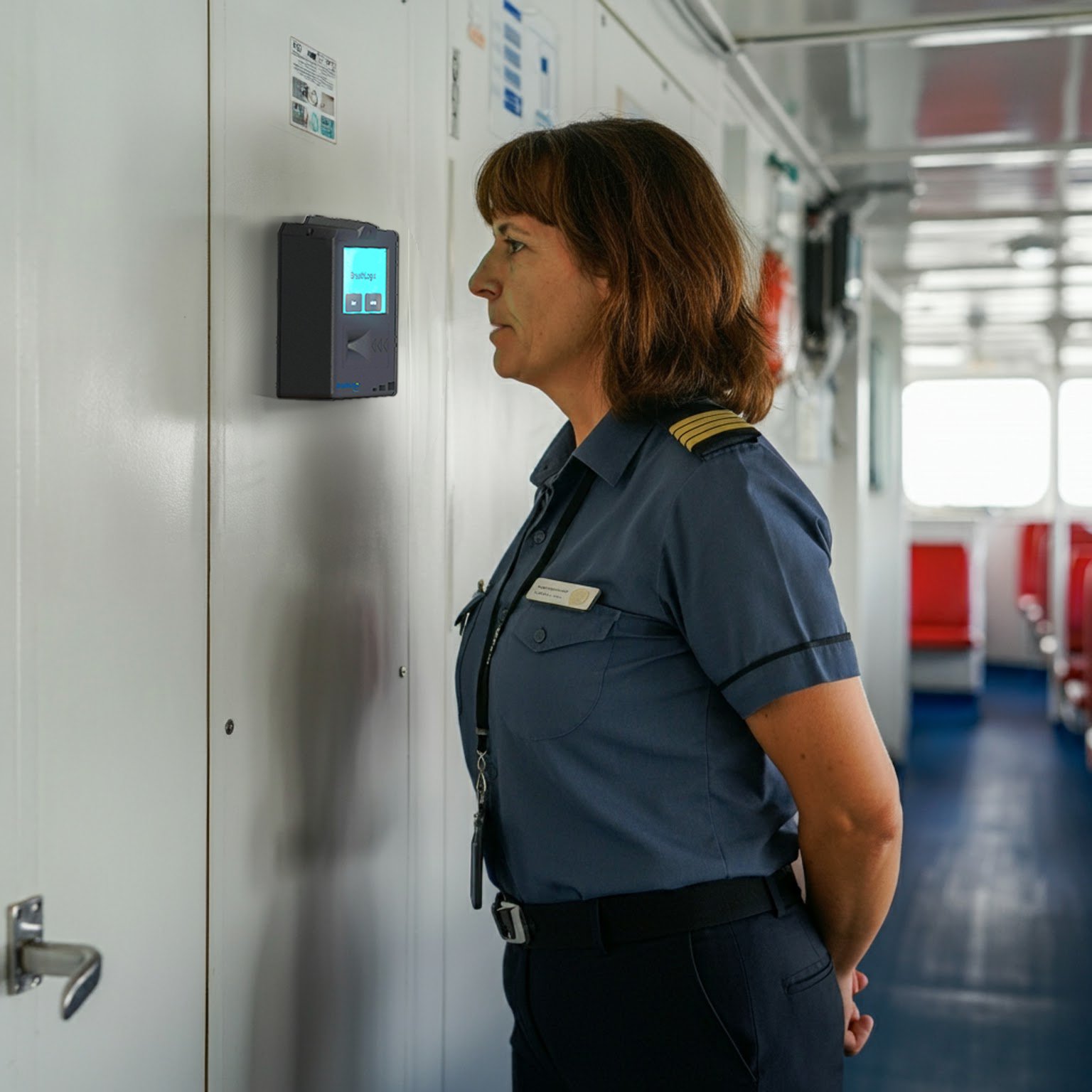

The Breath Logix Workplace Series (Br LGX WS) is a fully automated alcohol screening system designed for access control of employees, contractors, and visitors.

This self-administered, non-invasive device offers both contactless and direct testing modes. It is specifically built for fast, accurate, and repeatable high-volume screening in various workplace environments.

Its compact design, field-tested alcohol detection technology, and user-friendly interface ensure long-term durability and exceptional compliance from users.

Add to quote request

Specification

Alcohol Sensor: Fuel Cell with high sensitivity and wide detection range
Detection Range: 0 to 0.3 g/210 L BrAC
Accuracy: ± .005 g/210 L for 0 to 0.05 g/210 L BrAC. ± 10% for 0.05 to 0.3 BrAC
Response Time: Under 20 seconds
Recovery Time: 10 seconds for negatives, under 60 seconds on positives
Display: 5″ capacitive touch screen
Operating Temperature: 32° – 113° F (0° – 45° C)
Power: 12 Volt DC power adapter
Size: 6.3″ x 7″ x 2.7″ (16 x 17.8 x 6.8 cm)
Weight: 2.2 lbs
Material: ABS plastic

Key features

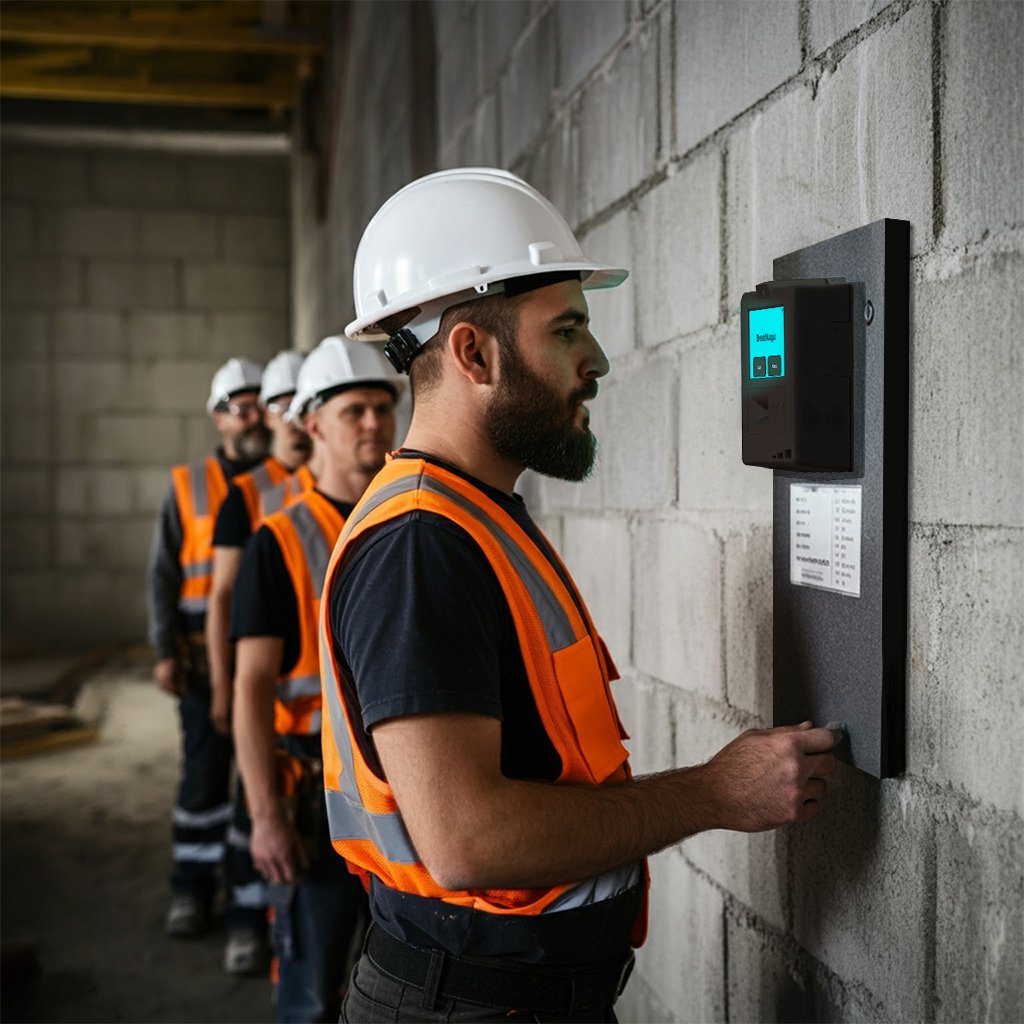

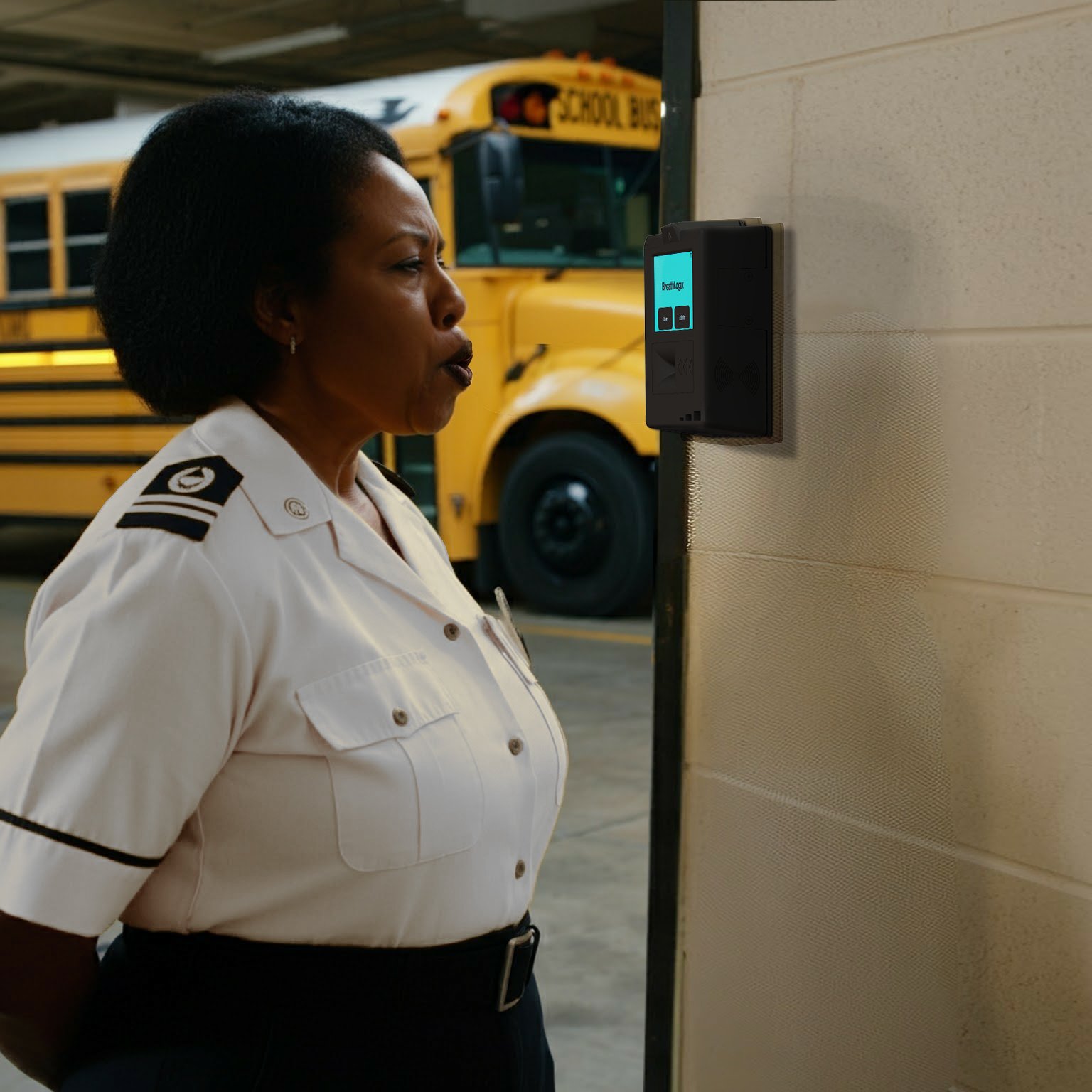

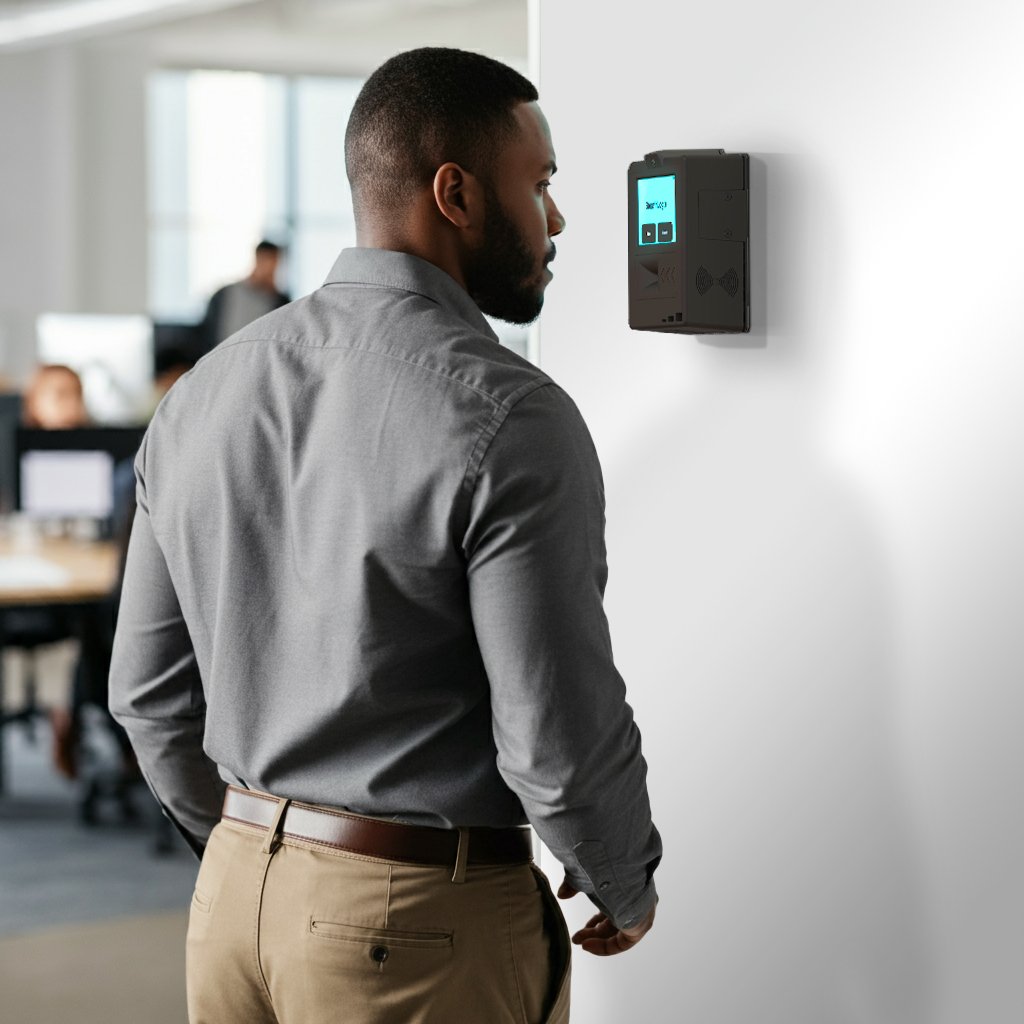

Breath Logix offers fully integrated solutions with intuitive graphic interface in an autonomous wall-mounted unit.

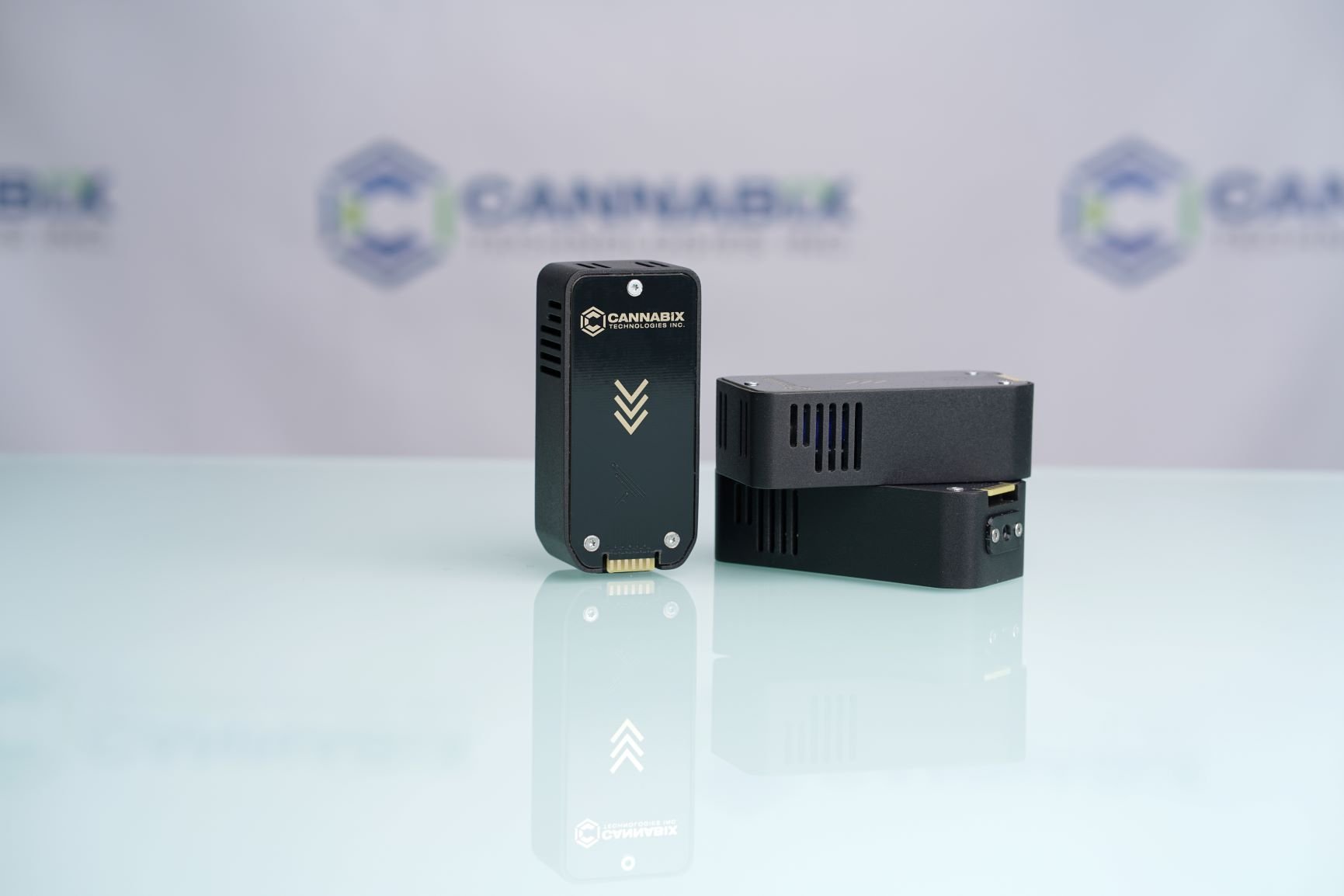

The Br-LGX-WS includes an innovative pre-calibrated modular cartridge technology that allows customers and distributors to efficiently maintain calibration and servicing of their Br-LGX-WS devices.
The Br-LGX-WS cartridge technology will reduce costly and time-consuming legacy calibration processes.

We recommend that you contact the distributor of your choice to ensure the availability of the desired product.

Breath Logix Br-LGX-WS Brochure
